Leica 徠卡生物顯微鏡 DM500
- 產品描述
- 產品參數
- 實拍圖片

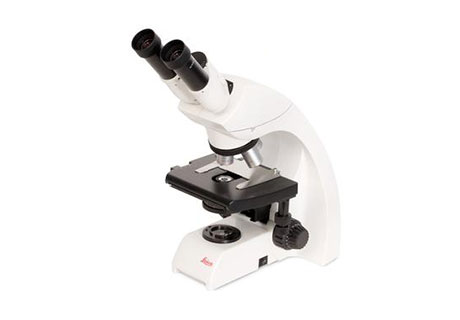

徠卡生物顯微鏡 DM500 具有“即插即用”功能，對于教師和學生，都是學院和大學初級生命科學課程教學的一種方便有趣的理想工具。
適合學生的各種功能，如預聚焦、預居中的聚光器和EZTube™預置屈光度，這些功能可以避免錯誤調整，為實踐操作教學提供更多時間。
EZStore™具有一體化手柄及繩裹，便于搬運和提升，且防止顯微鏡部件損壞。
DM500帶來的優勢:
- 具有預置屈光度的EZTube
- 預聚焦且預居中的聚光器 – 避免調整
- EZStore 具有手柄和繩裹，便于顯微鏡搬運，并保護顯微鏡部件免受損壞。
- EZLite –提供 超過20年的照明、LED照明可節省時間及更換燈泡的費用。
我們推薦DM500搭配成像系統 MC56使用：
MC56采用了創新SpeedXT core技術，提供非�？斓膶�(shí)時速度為13 fps的五百萬像素的分辨率。一個明顯的優勢，在分析移動對象和實驗室的日常工作中，由于增強實時圖像組合速度與高分辨率用戶被啟用以便進行精確聚焦和易于標本無交錯效果的定位更有效的方法。
MC56優點:
•SpeedXT core - 優秀的CCD:實時圖像速度容易聚焦
•卓越的圖像質量和高清晰度
•完美的色彩再現
•明美顯微測量分析軟件，操作簡單，功能強大
•方便快速的安裝
•優異的價格性能比
| Microscope Type | Trinocular Microscopes |
| Separate Eyepiece | 10x/20 (20mm Field of View) 30mm mounting diameter Available fixed or focusing Available with or without pointer Focusing eyepieces with reticle holder for 21mm reticle Foldable eyeguards High eyepoint |
| EZTube | 10x/18 (18mm Field of View) 45 degree viewing angle Attaches to stand with set screw Available with pointer and without pointer Captive thumbscrew availablity for safe rotation Eyepieces are integrated into tube Interpupillary Distance Range 52mm – 75mm Preset Diopters for corrected vision |
| Other Viewing Tubes for Separate Eyepieces | 45 degree, 30 degree, Trinocular Eyepiece locking screw Interpupillary Distance Range 52mm – 75mm Leica Tube dovetail standard Maximum Field of view 20mm Rotatable dovetail |
| Stand | 4 position nosepiece only Drop in holder for 32 mm mounted or not mounted filters External fuses Knurled nosepiece Stand construction – die cast aluminium Stand shape protects controls |
| EZStore | Cord wrap Undercut in front of stand Vertical cord attachment to stand Vertical handle |
| Objectives | 100x dry objective with N.A. 0.8 (no correction collar) HI Plan for FOV 20 Infinity Platform M25 nosepiece thread Objective labeling laser engraved (HI Plans) Plan optics for FOV 18 |
| EZGuide | 26mm x 76mm stage travel One handed slide loading |
| SafeTStage | Non extending rack Rounded stage edges Stage surface 185mm (150mm front) wide X 140mm deep Verniers for X/Y coordinates |
| Condenser | Prefocused and Precentered Condenser Slot in condenser for contrast sliders (Phase, Darkfield, Compensator) Magnification labels on condenser |
| Focusing | Low position focus controls Self adjusting focus mechanism 300 microns per fine focus rotation Calibrated in 3 micron increments |
| EZLite | Continuous intensity adjustment Illumination enough for viewing at lowest intensity LED illumination - 6000 K temp, 25,000 h life at full intensity Preset Field aperture only Simple Polarizing Kit available |
| Imaging | Trinocular tubes available (50%/50% light split) C mount adapters with standard Leica mount ICC50 Intermediate Camera Module (50%/50% light split) Stand Alone kit for ICC50 Camera Module (Power supply, Analog Video Cable) |
| Intermediate Modules | 15mm Flat top module 35mm Intermediate Ergo module available Analyzer Module with pin for Viewing Tube alignment Module for LSF Reflected Light Illuminator |
| AgTreat | Anti Microbial Treatment |
| Certifications | CE cULus RoHS |
沒有倒置熒光顯微鏡 MF53 關資料可下載，或者聯系我們的客服進行相關咨詢。
